Product Overview
The IEC 60320 AC power socket is designed for industrial UPS systems, power supply units, and electronic equipment requiring stable AC input connection. Rated at 10A and with a dielectric withstand voltage of 1500V, this panel mount power inlet ensures safe and reliable power transmission in demanding environments.
Key Features & Benefits
- IEC 60320 standard compliant AC power inlet socket
- Rated 10A current for stable industrial power supply
- Withstands up to 1500V dielectric voltage for high safety margin
- Panel mount design for easy integration into UPS and equipment
- High durability housing suitable for industrial environments
- Reliable connection for power supply, UPS, and automation systems
Technical Parameters
| Project Details | Values |
| Standard | IEC 60320 |
| Operating Temperature | -40°C to 85°C |
| Withstand Voltage | AC 1500V (50Hz/min) |
| Rated Current | 10A, 250V AC |
| Plug Capacity | 3-20A |
| Contact Resistance | ≤0.03Ω |
| Insulation Resistance | ≥100MΩ |
| Withstand Voltage | ≥2000V AC/min |
| Mounting Type | Panel Mount |
| Mechanical Life | >10,000 cycles |
| Application Fileds | UPS / Power Supply / Industrial Equipment |
Application Scenarios
- UPS uninterruptible power supply systems
- Industrial control cabinets
- Power distribution units (PDU)
- Electronic equipment power input
- Communication base station power systems
- Test and measurement equipment
- Automation and robotics systems
Frequently Asking Questions (FAQ)
Q1: What is an IEC 60320 AC power socket used for?
A1: It is used to provide a standardized AC power connection for industrial and electronic equipment such as UPS systems and power supplies.
Q2: Can this 10A AC socket be used in UPS systems?
A2: Yes, it is commonly used in UPS systems that require stable AC input up to 10A.
Q3: What does 1500V withstand voltage mean?
A3: It indicates the insulation strength of the connector, ensuring safe operation under high voltage stress conditions.
Q4: Is this AC power socket suitable for industrial use?
A4: Yes, it is designed for industrial-grade applications including control systems and power distribution equipment.
Q5: What mounting type does this connector use?
A5: It uses a panel mount design, suitable for integration into equipment enclosures.
⚙️ Looking for a Complete Cable Assembly or Custom Pinout Wiring Solution?
We provide turnkey OEM ODM services for industrial camera IO cables, trigger cables, and power harnesses.
Get Free Custom Cable Quote
|
|

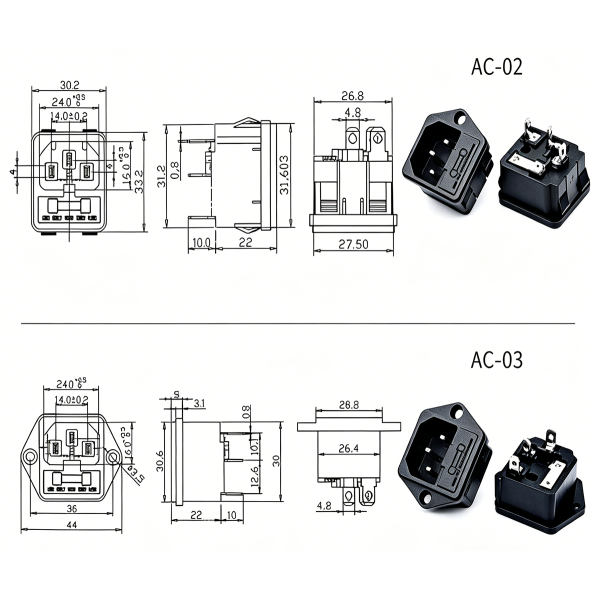

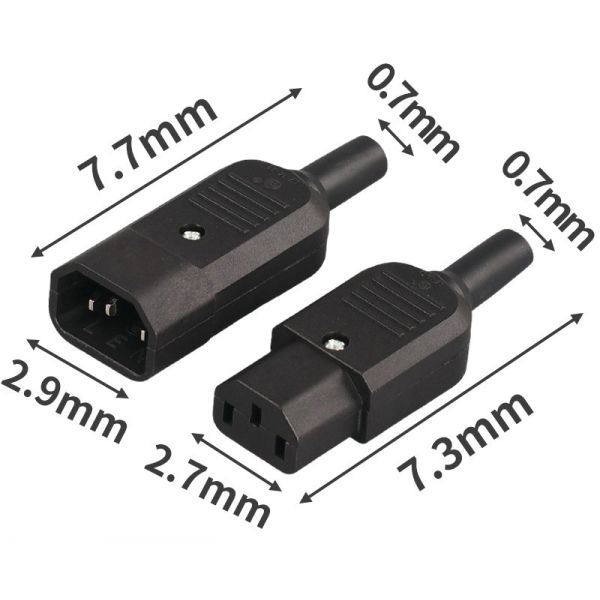

IEC 60320 AC Power Socket 10A 1500V Panel Mount for UPS Systems Images
|
